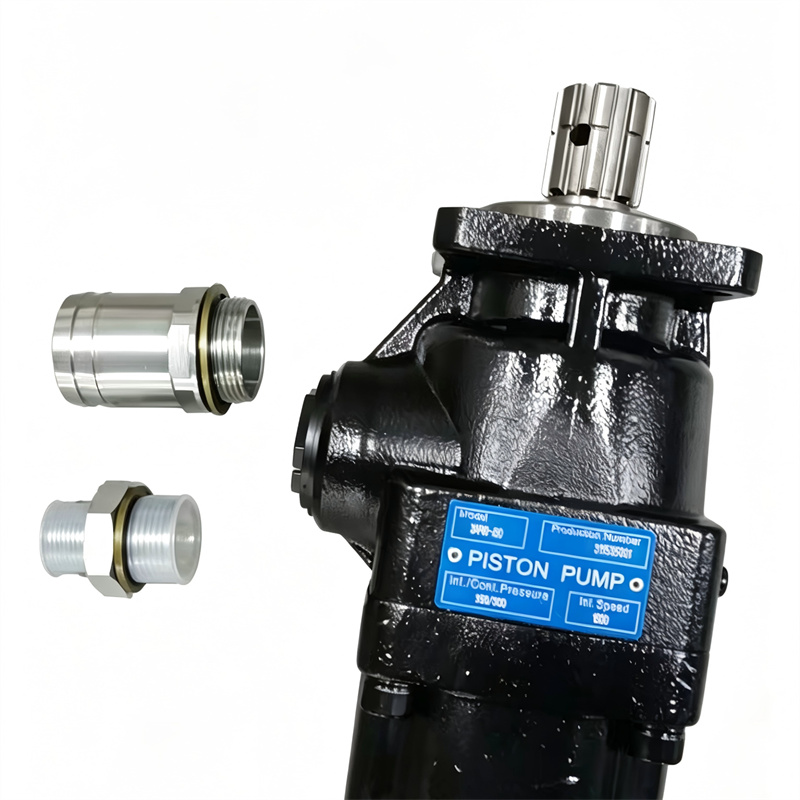

Direct Factory 2AP60-ISO Hydraulic Piston Pump Pto Powerfull for Tipper Truck Dump Truck for Lifting

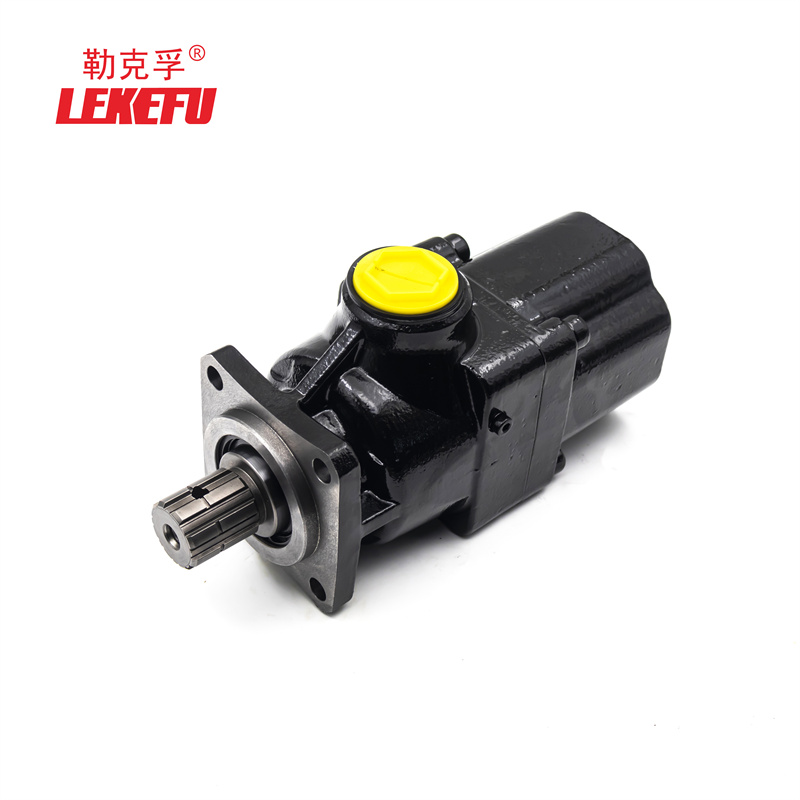

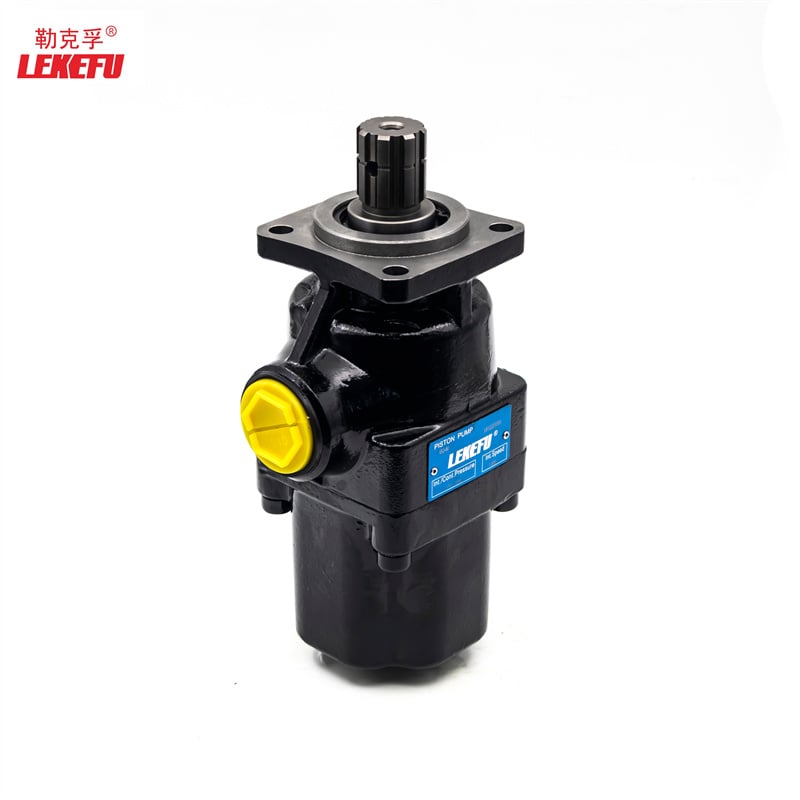

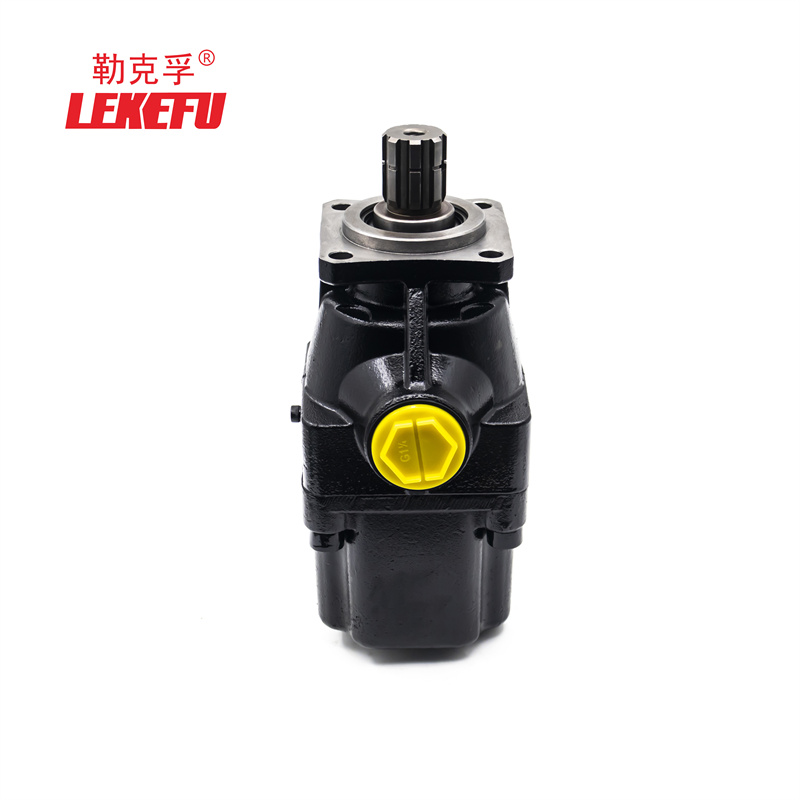

LEKEFU ISO 4H Bi-Rotation Straight Shaft Piston Pump Series

The LEKEFU 2AP Series ISO 4H Bi-Rotation Straight Shaft Piston Pump is a high-performance hydraulic component designed for heavy-duty vocational vehicle systems. Built to IATF 16949 quality standards, this bi-rotational piston pump delivers reliable, high-pressure power transfer for dump trucks, cement mixers, sprinkler trucks, and other equipment requiring robust hydraulic actuation.

Core Specifications & Design

Displacement Range: 29.64 mL/r (2AP30-ISO) to 100.27 mL/r (2AP100-ISO), covering diverse flow requirements

Pressure Ratings: Rated pressure 30 MPa, temporary pressure up to 35 MPa, suitable for high-load hydraulic circuits

Max Speed: 1400 r/min, optimized for continuous-duty applications

Port Configuration: Inlet ports available in G1, G1 1/4, and G1 1/2; outlet port G1/G1 1/4 options

Shaft & Mounting: ISO 4H standard spline (8-32×36×6, ISO 14) with Ø80 flange, 4×Ø12.5 mounting holes for universal compatibility

Weight: 15.2–20.8 kg, balancing strength and compactness for easy installation

Certification: Manufactured under the IATF 16949 Automotive Quality Management System, ensuring consistent quality and reliability

This piston pump is ideal for powering auxiliary hydraulic systems in:

Dump Trucks: Driving high-torque hydraulic hoist cylinders for fast, reliable bed lifting and material discharge

Cement Tank Trucks: Powering mixing and discharge systems to keep concrete agitated and ensure smooth unloading

Sprinkler Trucks & Road Maintenance Vehicles: Operating water pumps and hydraulic actuators for spraying and cleaning functions

Specialized Equipment: Supporting hydraulic circuits for cranes, garbage compactors, and other vocational vehicles requiring bi-directional or high-pressure hydraulic power

Backed by LEKEFU’s strict quality control and stable production capacity, this pump offers a cost-effective, long-lasting solution for your heavy-duty hydraulic needs.

· Bi-Rotation Capability: Operates efficiently in both clockwise and counterclockwise directions, eliminating the need for pump-specific rotation matching and simplifying system design.

· High Efficiency & Durability: Precision-machined internal components and high-quality materials minimize internal leakage, delivering high volumetric efficiency and low noise even under continuous high-pressure operation.

· Wide Displacement Coverage: Multiple displacement options (30–100 series) allow precise matching to different vehicle power take-off (PTO) configurations and hydraulic system flow demands.

· Robust Construction: Heavy-duty cast iron housing with anti-corrosion coating ensures resistance to vibration, shock, and harsh operating environments, extending service life.

· Easy Integration: Standard ISO 4H mounting and spline design enables direct compatibility with most truck PTO units, reducing installation complexity and downtime.

1.What types of power take-off (PTO) and hydraulic pumps do you produce?

We specialize in manufacturing a full range of - specific PTOs and hydraulic pumps, including gear pumps, piston pumps. We also offer customized models to meet the power and flow requirements of different dump truck models (e.g., heavy-duty, medium-duty, and small-duty dump trucks).

2.Are your PTOs and hydraulic pumps compatible with global dump truck brands?
Yes. Our products are compatible with mainstream dump truck brands worldwide, such as Isuzu, Eaton,Kamaz, Scania and Volvo. We provide standard models for well-known brand OEM/ODM needs, and we can also adjust product parameters (shaft type, flow, pressure) to match non-standard dump truck models through custom development.

3.What quality certifications do your products hold?

All our key products have obtained IATF 16949:2016 certification (automotive industry standard). Each product undergoes 100% quality inspection (including pressure resistance, wear resistance, and durability testing) before leaving the factory to ensure stable performance.

4.What is your production capacity and delivery time?

The annual production of power take-off and various pump products exceeds 200,000 units. For standard models:

1.Stock products: Delivery within 3-5 working days after payment;

2.Custom models: Delivery within 15-25 working days after confirming the order and design drawings.

5.Can you customize PTOs and hydraulic pumps according to our specific requirements?

Yes. We have a professional R&D team (10+ engineers) to support full customization:

1.Customizable content: Shaft type, flow, pressure, size, logo, and packaging;

2.Custom process: Provide product drawings/parameters , Confirm design , Sample production , Mass production, Delivery;

3.MOQ for custom orders: Negotiable.
