Power take-off used in heavy-duty trucks, dump trucks, and powder tanker gearboxes such as ZFZF9S1110,1310, etc.

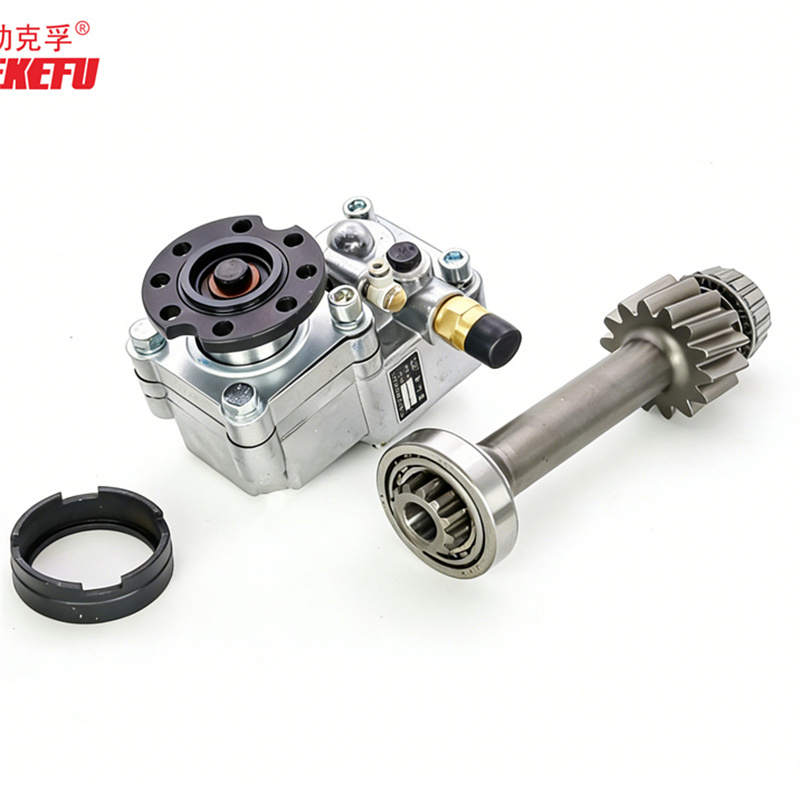

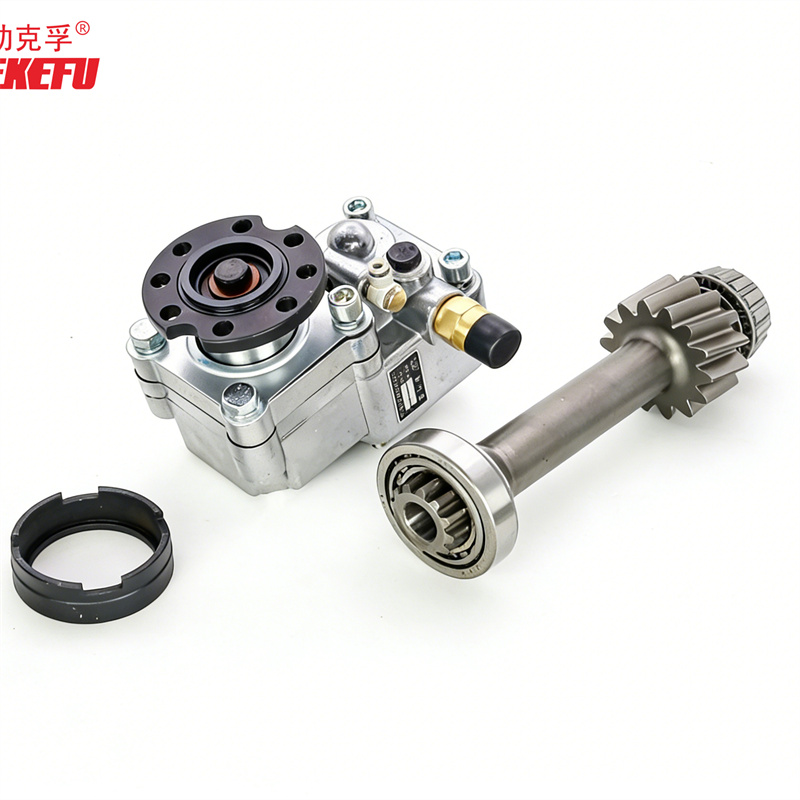

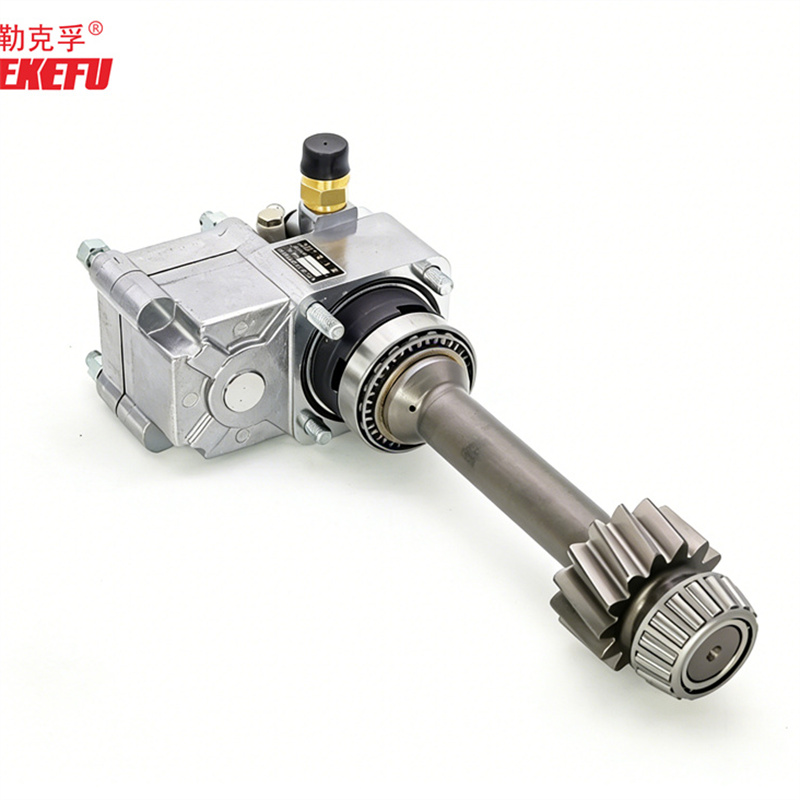

LEKEFU 50E9110 Power Take-Off (PTO)

A Power Take-Off (PTO) is a mechanical device that extracts rotational power from a vehicle's engine or transmission and transfers it to auxiliary equipment, enabling specialized functions without a separate engine. It is widely used in commercial vehicles, agricultural machinery, and industrial equipment.

The LEKEFU 50E9110 Power Take-Off (PTO) is a high-performance, factory-direct component engineered for heavy-duty commercial vehicles. Designed to extract power from the vehicle's chassis transmission, it transfers rotational force to auxiliary hydraulic systems, enabling critical functions for dump trucks, sprinkler trucks, cement tank trucks, and other specialized vocational vehicles. Built to meet the demands of continuous operation, this PTO ensures reliable power conversion and transmission for your vehicle's upper-mounted equipment.

Core Specifications & Design

Modeled as 50E9110, with a gear ratio of 1:1.2 for direct, efficient power transfer. It delivers a rated output torque of up to 300 Nm at a rotation direction of dextrorotation, making it suitable for high-load applications. The compact yet robust design features standard spline/flange output configurations for seamless integration with hydraulic pumps and drive shafts. The unit is certified to the IATF 16949 Automotive Quality Management System, guaranteeing consistent manufacturing quality and long-term durability.

Quality & Logistics

The unit is certified to the IATF 16949 Automotive Quality Management System, guaranteeing consistent manufacturing quality and long-term durability.It is packaged in cartons with protective trays for safe transport, and with a production capacity of 200,000 units annually, we ensure stable supply for bulk orders. Whether for new vehicle assembly or aftermarket replacement, the LEKEFU 50E9110 PTO offers a cost-effective, high-quality solution for your vocational vehicle power needs.

A Power Take-Off (PTO) is a mechanical device that extracts rotational power from a vehicle’s engine or transmission and transfers it to auxiliary equipment, enabling specialized functions without a separate engine. It is widely used in commercial vehicles, agricultural machinery, and industrial equipment.

The LEKEFU 50E9110 Power Take-Off (PTO) is a high-performance, factory-direct component engineered for heavy-duty commercial vehicles. Designed to extract power from the vehicle’s chassis transmission, it transfers rotational force to auxiliary hydraulic systems, enabling critical functions for dump trucks, sprinkler trucks, cement tank trucks, and other specialized vocational vehicles.

Power Diversion: Takes power from the vehicle's powertrain (usually the transmission) to drive auxiliary systems such as hydraulic pumps, winches, blowers, or generators.

Engage/Disengage: Operated via pneumatic, mechanical, electric, or hydraulic controls, allowing the main engine to run independently when the PTO is disengaged.

Versatility: Transforms standard trucks into specialized work vehicles (e.g., dump trucks, concrete mixers, fire trucks).

Key Features & Benefits

Versatile Compatibility: Tailored for dump trucks, cement tank trucks, and sprinkler trucks, it powers hydraulic lifting systems, water pumps, and bulk material discharge mechanisms.

Robust Construction: New, factory-built components with strict quality control ensure resistance to vibration, shock, and harsh operating environments.

Easy Installation: The mounting hole pattern and standardized dimensions simplify retrofitting on compatible transmissions, reducing downtime during installation.

High Efficiency: The 1:1.2 gear ratio minimizes power loss, maximizing the performance of connected hydraulic systems for faster cycle times and lower fuel consumption.

Reliable Operation: Built with precision-engineered gears and bearings to deliver consistent torque output, even under continuous, heavy-duty use.

1.What types of power take-off (PTO) and hydraulic pumps do you produce?

We specialize in manufacturing a full range of - specific PTOs and hydraulic pumps, including gear pumps, piston pumps. We also offer customized models to meet the power and flow requirements of different dump truck models (e.g., heavy-duty, medium-duty, and small-duty dump trucks).

2.Are your PTOs and hydraulic pumps compatible with global dump truck brands?
Yes. Our products are compatible with mainstream dump truck brands worldwide, such as Isuzu, Eaton,Kamaz, Scania and Volvo. We provide standard models for well-known brand OEM/ODM needs, and we can also adjust product parameters (shaft type, flow, pressure) to match non-standard dump truck models through custom development.

3.What quality certifications do your products hold?

All our key products have passed IATF 16949:2016 certification (automotive industry standard). Each product undergoes 100% quality inspection (including pressure resistance, wear resistance, and durability testing) before leaving the factory to ensure stable performance.

4.What is your production capacity and delivery time?

The annual production of power take-off and various pump products exceeds 200,000 units. For standard models:

1.Stock products: Delivery within 3-5 working days after payment;

2.Custom models: Delivery within 15-25 working days after confirming the order and design drawings.

5.Can you customize PTOs and hydraulic pumps according to our specific requirements?

Yes. We have a professional R&D team (10+ engineers) to support full customization:

1.Customizable content: Shaft type, flow, pressure, size, logo, and packaging;

2.Custom process: Provide product drawings/parameters , Confirm design , Sample production , Mass production, Delivery;

3.MOQ for custom orders: Negotiable (usually ≥100 sets for standard custom, ≥100 sets for existing model modification).
