Used for Mercedes Gear Box Power Take off Pto G131 Connection Kit Heavy Duty Dump Truck Torque Converter Transmission Parts

Product Description: LEKEFU LKFG131 PTO Connection Kit (Transition Plate & Drive Shaft)

Introduction The LEKEFU G131 connection kit is a precision-engineered solution designed to seamlessly connect your power take-off (PTO) unit to Mercedes-Benz truck transmissions. Comprising a high-strength transition plate and a splined drive shaft, this kit ensures reliable power transfer from the gearbox to auxiliary hydraulic systems, making it essential for dump trucks, cement tank trucks, sprinkler trucks, and other vocational vehicles. Built to IATF 16949 quality standards, this kit delivers durability, compatibility, and flexibility for specialized truck applications.

Core Specifications & Design

Transition Plate (Mounting Flange)

Overall dimensions: 157 × 146 mm

Mounting configuration: 7 × Ø11 bolt holes + 4 × M12 threaded holes for secure gearbox/PTO attachment

Precision CNC-machined interface to match Mercedes-Benz truck gearbox mounting geometry, ensuring zero alignment deviation and leak-proof fit

Integrated gasket interface with green composite sealing gasket to prevent oil leakage and dampen operating vibrations

Drive Shaft (Splined Shaft)

Spline specifications:

Transmission side: Ø34 Z16 spline profile

PTO/hydraulic pump side: Ø44.5 Z12 spline profile

Shaft diameter: Ø18 mm at the bearing journal, with Ø47.5 bearing seat (for bearing installation)

Standard shaft lengths (customizable):

L1 (drive side): 221 / 238 / 247 / 266 mm

L2 (total length): 249 / 266 / 275 / 294 mm

Heat-treated steel construction for enhanced torsional strength, wear resistance, and fatigue resistance under continuous high-load operation

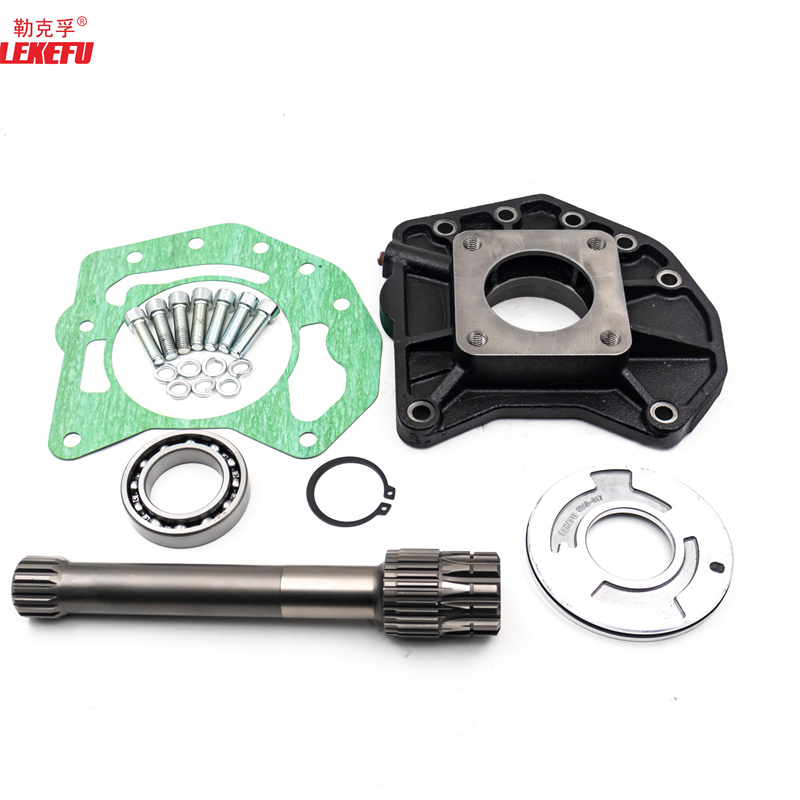

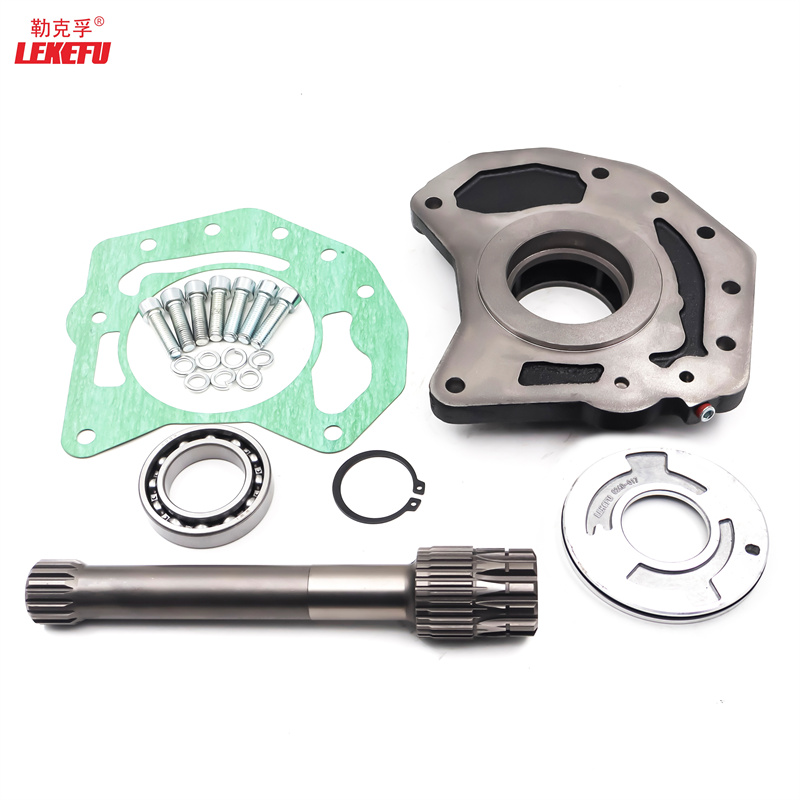

Complete Kit Components

Includes all necessary installation hardware: bolts, washers, retaining rings, precision bearing, sealing gasket, and auxiliary mounting parts for a one-stop installation solution

Modular design allows for easy assembly and disassembly, simplifying both new installation and aftermarket replacement processes

Quality & Logistics Manufactured in China under the LEKEFU brand, the unit undergoes rigorous testing to meet industry standards. It is packaged in cartons with protective trays for safe transport, and with a production capacity of 200,000 units annually, we ensure stable supply for bulk orders. Whether for new vehicle assembly or aftermarket replacement, the LEKEFU G240 connection kit offers a cost-effective, high-quality solution for your vocational vehicle power needs.

This connection kit is the ideal power transfer solution for:

Dump Trucks: Transmitting power to hydraulic hoist systems for efficient bed lifting and material discharge.

Cement Tank Trucks: Powering mixing augers and discharge pumps to keep concrete agitated and ensure smooth unloading.

Sprinkler Trucks: Driving water pumps for spraying, road washing, and dust suppression operations.

Other Specialized Vehicles: Supporting auxiliary hydraulic systems for cranes, garbage trucks, and other vocational equipment requiring power from the transmission.

Manufactured in China under the LEKEFU brand, the LKFG131 connection kit is backed by a 200,000-unit annual production capacity, ensuring reliable supply for bulk orders. Packaged in cartons with protective trays, it arrives ready for installation, providing a cost-effective, long-lasting solution for your Mercedes-Benz truck PTO needs.

Key Features & Benefits

· Perfect Fit & Compatibility: Precision CNC-machined to match Mercedes-Benz truck gearbox interfaces, eliminating fit issues and ensuring seamless integration with your PTO unit.

· Flexible Customization: Multiple standard shaft lengths are available to accommodate different installation depths, and custom-length shafts can be produced to meet unique vehicle or hydraulic pump requirements.

· High Durability: Cast iron transition plate and heat-treated steel drive shaft deliver exceptional strength and wear resistance, even under continuous heavy-load operation.

· Complete Installation Kit: Includes all necessary hardware (bolts, washers, bearings, gaskets, and retaining rings) for straightforward, one-step installation, reducing downtime and assembly errors.

· Leak-Proof & Vibration-Resistant: High-quality gasket and precision machining prevent fluid leaks and dampen vibrations, extending the service life of both the kit and connected components.

1.What types of power take-off (PTO) and hydraulic pumps do you produce?

We specialize in manufacturing a full range of - specific PTOs and hydraulic pumps, including gear pumps, piston pumps. We also offer customized models to meet the power and flow requirements of different dump truck models (e.g., heavy-duty, medium-duty, and small-duty dump trucks).

2.Are your PTOs and hydraulic pumps compatible with global dump truck brands?
Yes. Our products are compatible with mainstream dump truck brands worldwide, such as Isuzu, Eaton,Kamaz, Scania and Volvo. We provide standard models for well-known brand OEM/ODM needs, and we can also adjust product parameters (shaft type, flow, pressure) to match non-standard dump truck models through custom development.

3.What quality certifications do your products hold?

All our key products have obtained IATF 16949:2016 certification (automotive industry standard). Each product undergoes 100% quality inspection (including pressure resistance, wear resistance, and durability testing) before leaving the factory to ensure stable performance.

4.What is your production capacity and delivery time?

The annual production of power take-off and various pump products exceeds 200,000 units. For standard models:

1.Stock products: Delivery within 3-5 working days after payment;

2.Custom models: Delivery within 15-25 working days after confirming the order and design drawings.

5.Can you customize PTOs and hydraulic pumps according to our specific requirements?

Yes. We have a professional R&D team (10+ engineers) to support full customization:

1.Customizable content: Shaft type, flow, pressure, size, logo, and packaging;

2.Custom process: Provide product drawings/parameters , Confirm design , Sample production , Mass production, Delivery;

3.MOQ for custom orders: Negotiable.
